Floorplan - 2015 CrossRoads RV Cruiser CF326RE
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

-
Sleeps 4
-
3 Slides
-
Rear EntertainmentFront Bedroom
-
36ft Long
-
10,352 lbs

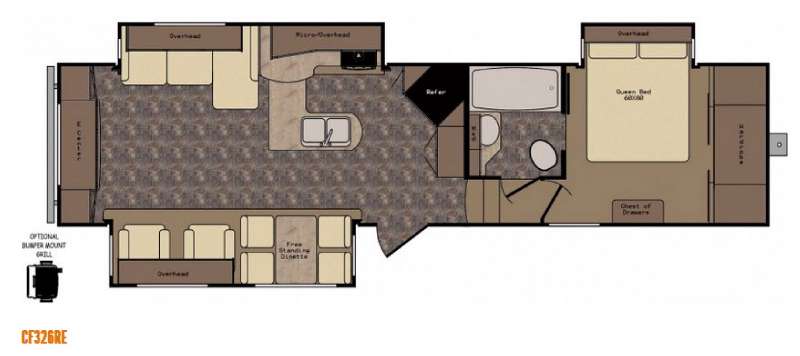

CF326RE Floorplan
Specifications
Sleeps | 4 | Slides | 3 |
Length | 35 ft 9 in | Ext Height | 12 ft 8 in |
Hitch Weight | 1934 lbs | GVWR | 12334 lbs |
Dry Weight | 10352 lbs | Cargo Capacity | 1982 lbs |
Fresh Water Capacity | 58 gals | Grey Water Capacity | 80 gals |
Black Water Capacity | 40 gals | Tire Size | 235/80R16E |
Furnace BTU | 35000 btu |
Description
The Cruiser CF326RE fifth wheel by CrossRoads RV offers triple slides and a rear entertainment.
When you enter the fifth wheel, to the left there is a slide with a free-standing table and chairs, and two lounge chairs. Along the rear wall you will find an entertainment center. There is another slide on the other side of the fifth wheel with a l-sofa, and a l-shaped counter, three burner range, and microwave. The kitchen sink is located on the l-shaped counter. Next to the slide there is a refrigerator, and pantry.
Stepping up the stairs, the bathroom is on the left. Inside the bathroom there is a sink, medicine cabinet, shower/tub, and toilet.
The front bedroom greets you with a queen bed slide. Along the front wall there is a wardrobe with sliding doors. In the corner of the room you will find that it is washer and dryer prepped. Along one side there is a chest of three drawers and a TV above the chest.
Outside you can even choose an optional bumper mount grill.
Features
- High gloss laminated sidewalls
- 5-Sided Aluma frame construction
- Aerodynamic front cap with LED accent lights
- One-piece seamless rubber roof covering
- Radius roof line
- Total Truss room system
- 30"x72" main entry door
- Lighted triple entry step
- Extendable grab handle at main entry
- EZ lube axles
- Trail air equa-flex suspension
- 16" nitrogen filled radial tires
- Galvanized wheel well
- Outside kitchen (VBM)
- Super-Stor pass through basement storage
- Metal slam latch pass through baggage doors
- Cable prep and electric outlet in basement
- Manual slide override extends through frame for easy access
- Dura-Cam I beam frame
- Scare light
- Exterior marine grade speakers (2)
- Dual battery capacity
- Battery disconnect
- Heated and enclosed gate valves
- ABS Enclosed underbelly
- Forced heat to underbelly
- Black tank flush
- Quick recovery 10gal G/E DSI water heater (19.7 gal/hr)
- Outside shower
- Exterior utility center
- 50amp detachable power service
- 2nd AC prep
- Cable/SAT prep
- Digital TV antenna
- Electric rear jacks
- Outside grill prep
- Roof ladder
- Lumber core Screwed stile cabinetry construction
- Raised panel cabinetry throughout
- 70-lb steel ball bearing guides, full extension
- Solid wood drawer construction
- Hardwood mullion style fridge front
- Extendable free standing table and chairs
- Self igniting 22" oven with 3-burner cook top
- Range cover
- Knife rack
- Adjustable pantry shelving
- Pull out kitchen faucet
- Stainless steel kitchen sink with sink cover
- Maximum lino
- Tri-Fold hide a bed sofa
- Rocker recliner chairs (VBM)
- Deluxe theater seating (VBM)
- Ceiling fan
- Fireplace with remote
- Slideout sidewall light (VBM)
- OHC above sofa/chairs in slideout
- Decorative wood slide fascias
- Water heater by-pass kit
- EZ winterization kit
- Backlit command center for switches
- 65amp converter with distribution center
- Bath skylight
- Built medicine cabinet
- Glass tub/shower enclosure
- Deluxe bedding package
- Full trunk under bed storage
- Plywood bed base with strut assist
- Spacious bedroom closets
- Washer/dryer prep (VBM)
- Fire extinguisher
- LP/CO2 detector
- Smoke detector
Select Package: Mandatory
- 8cu ft refer
- 12v Multi-media sound system with bluetooth
- Black Label furniture
- Deluxe soft pull roller shades
- Dark tinted safety glass windows
- Glazed maple cabinetry
- Interior safety step light
- Interior grab handle
- Linc pad wireless remote
- Dual 30# lp tanks with auto changeover
- Porcelain toilet with foot flush
- 32" - 46" LED TV in living area (VBM)
- Microwave
- 35,000 btu furnace
- 10 gal G/E DSI water heater
- 15K ducted air system with quick cool
- Spare tire
- Solid surface kitchen countertops
- Polartec insulation package
- Aluminum rims
- Vetro high gloss sidewalls
- Electric awning with LED light
- Trail Air Roto-flex pin box
- Equa flex suspension
- Correct track alignment system
- Black Label mattress (60"x80")
Options
- Rear hitch receiver
- Bumper mount grill
- Insulated windows
- 2nd AC (lo-profile 13.5)
- Maxx Aire Fan with rain sensor in bathroom
- Maxx Aire fan with rain sensor in kitchen
- King bed IPO Queen (322RL)
- Free standing table and chairs with recliner (345BH)
- Carpet in living area
- 32" TV with bracket in bedroom
- Slide awning package
- Gound control 3.0 electric auto leveling system
Polartec Components:
- Sidewall (R9) - Block foam insulation + double layer lauan
- Roof (R29) - Wood rafters + R-14 spun insulation + R-15 Astrofoil
- Floor system (R29) - R-14 spun insulation + R-15 astrofoil + ABS enclosure
- Front wall (R22) - R-7 spun insulation + R-15 astrofoil
- Rear wall (R22) - R-7 spun insulation + R-15 astrofoil
- Slide floor (R15) - R-15 astrofoil insulation
- Slide end walls (R22) - R-7 spun insulation + R-15 astrofoil
- Bedroom deck (R22) - R-7 spun insulation + R-15 astrofoil
- Above open pin box (R15) - R-15 astrofoil
- Gate valves - Enclosed and heated
- Underbelly - Forced heat to tanks
- 35,000 BTU Furnace - Largest in its class
Total Truss Roof System:
- 50% stronger than competitive roof designs
- 4 1/2" crowned wood truss 16" O.C.
- 2" x 2" vertical wood stud supports to maximize load capacity
- Oversized nail plates for greater stability
- 3/8" plywood roof decking (secured in place with screws)
- Fully walkable
Construction:
- One piece seamless rubber roofing material with 12 year warranty
- 3/8" plywood roof decking (screwed in place)
- R-14 spun insulation + R-15 astrofoil
- 16" O.C. total truss roof system
- Aluminum radius roof transition
Sidewall:
- 2" laminated aluminum superstructure
- White high gloss exterior
- Block foam insulation
- Double layer lauan paneling
Front Wall:
- 2" aluminum framed superstructure 16" O.C.
- R-7 spun insulation + R-15 astrofoil
- Vetro high gloss gel coat aerodynamic front cap
Rear Wall:
- 2" aluminum framed superstructure 16" O.C.
- R-7 Spun insulation + R-15 astrofoil
- Black high gloss exterior
Slide End Wall:
- 2" aluminum framed superstructure 16" O.C.
- R-7 spun insulation + R-15 astrofoil
- Black high gloss exterior
Slide Sidewall:
- 2" laminated aluminum superstructure
- White high gloss exterior
- Block foam insulation
- Double layer lauan paneling
Slide Roof:
- 2" aluminum framed superstructure 16" O.C.
- R-7 spun insulation + R-15 astrofoil
- One piece seamless rubber roofing material with 12 year warranty
Slide Floor:
- 5/8" beveled floor decking
- R-15 astrofoil insulation
- Darco seamless underbelly
Floor System:
- Seamless ABS Enclosure
- Dura-Cam I beam Frame
- Darco seamless underbelly
- Duct openings for forced heat
- 2" aluminum framed superstructure 16" O.C.
- R-14 spun insulation + R-15 astrofoil
- 5/8" tongue and groove plywood floor decking (screwed in place)
See us for complete list of features and available options.
